Scribe

Geometric Model

Coordinates

Euclidean Plane

A point in (2-dimensional) space (a.k.a. plane), is defined as

\[\begin{align*} \mathbf{p}_i &= \begin{bmatrix} y\\x \end{bmatrix}_i = \begin{bmatrix} y_i\\x_i \end{bmatrix} \end{align*}\]

The vector difference between two points is defined as,

\[\begin{align*} \mathbf{p}_i-\mathbf{p}_j &= \begin{bmatrix} y_i-y_j\\x_i-x_j \end{bmatrix} \end{align*}\]

The distance between two points is a symmetric function of the two points, defined as,

\[\begin{align*} \delta_{ij} &= \|\mathbf{p}_i-\mathbf{p}_j\|_2 \\ \delta_{ij}^2 = \delta_{ji}^2 &= \|\mathbf{p}_i-\mathbf{p}_j\|_2^2 = (y_i-y_j)^2+(x_i-x_j)^2 \end{align*}\]

Euclidean Space

Extend the understanding to multiple dimensions, and we get Euclidean Space,

A point in (d-dimensional) space, is defined as

\[\begin{align*} \mathbf{p} &= \begin{bmatrix}p_1\\\vdots\\p_d\end{bmatrix} \end{align*}\]

The vector difference between two points is defined as,

\[\begin{align*} \mathbf{p}-\mathbf{q} &= \begin{bmatrix} p_1-q_1 \\ \vdots \\ p_d-q_d \end{bmatrix} \end{align*}\]

The distance between two points is a symmetric function of the two points, defined as,

\[\begin{align*} \delta_{pq} &= \|\mathbf{p}-\mathbf{q}\|_2 \\ \delta_{pq}^2 = \delta_{qp}^2 &= \|\mathbf{p}-\mathbf{q}\|_2^2 = (p_1-q_1)^2+\cdots+(p_d-q_d)^2 \end{align*}\]

Polar Coordinates

\(\mathbf{p} \equiv (r,\theta)\)

Defined by an origin, a pole, and each point in (2-dimensional) space is defined by

\(r\), the distance between the point and origin; and
\(\theta\), the angle between pole and the line joining the point and origin.

Spherical Coordinates

\(\mathbf{p} \equiv (r,\theta,\phi)\)

Extend the polar coordinates to three dimensional space, we get spherical coordinates.

Geo-spherical Coordinates

\(\mathbf{p} \equiv (\theta,\phi)\)
or
\(\mathbf{p} \equiv (1,\theta,\phi)\)

Useful when the space is a spherical surface, e.g.

The surface of the earth;
Projection surface (i.e. where the distance does not matter.)

Assume that for all points in space, \(r\) is constant; and hence redundant; and thus a point is expressed only in angular coordinates,

Coordinate Systems and Frames of Reference

Another way to define coordinate system is like specifying a reference frame. It’s also referred to as “space”. E.g.

Earth revolves around the sun.

\[\begin{align*} \begin{bmatrix} y\\x \end{bmatrix}_t &= \begin{bmatrix} r\sin\omega t\\ r\cos\omega t \end{bmatrix} \end{align*}\]

where, \(\begin{bmatrix} y&x \end{bmatrix}_{t}^{\top}\) are Earth’s coordinates in “Sun’s space” or in “the coordinate system with respect to the Sun.”

where, \(\omega\) is the (uniform) angular velocity of (centre of the) earth; \(t\) is time; and that \(r\) is a constant (the earth-to-sun distance).
The Earth rotates around its axis;

\[\begin{align*} \begin{bmatrix} y\\x \end{bmatrix}_t &= \begin{bmatrix} r\sin\omega t\\ r\cos\omega t \end{bmatrix} \end{align*}\]

where, \(\begin{bmatrix} y&x \end{bmatrix}_{t}^{\top}\) are coordinates of Earth’s surface in “Earth Axis’ space” or in “the coordinate system with respect to the Earth’s Axis.”

where, \(\omega\) is the (uniform) angular velocity of earth’s rotation about it’s (diametric) axis; \(t\) is time; and that \(r\) is a constant (the earth’s radius).

Linear Transformation

From Linear Algebra,
with \(\mathbf{x}\in\mathbb{X}\)
implicitly read as vector \(\mathbf{x}\) in vector-space \(\mathbb{X}\).

Similarly \(\mathbf{y}\in\mathbb{Y}\), and
a linear map \(A:\mathbb{X}\to\mathbb{Y}\)
read as \(A\) maps \(\mathbb{X}\) to \(\mathbb{Y}\)
And \(A\) is a matrix.

Please note that if \(\mathbb{X}\) is \(M\) dimensional and \(\mathbb{Y}\) is \(N\) dimensional, then \(A\) is said to be \(N\times M\) dimensional, so that,

\[\begin{align*} \mathbf{y} &= A\mathbf{x} \end{align*}\]

would imply that \(\mathbf{y}\) is a point in \(\mathbb{Y}\) corresponding to \(\mathbf{x}\) in \(\mathbb{X}\).

This operation is also known as linear transformation.

Geometric Transformation

Geometric Operations

Scale
Translate
Rotate
Shear
Project (or, Projection)

Scale

\[\begin{align*} \mathbf{y} &= A\mathbf{x} &= \begin{bmatrix} s_1x_1 \\ s_2x_2 \end{bmatrix} \\ A &= \begin{bmatrix} s_1 & 0 \\ 0 & s_2 \end{bmatrix} \end{align*}\]

Rotate

\[\begin{align*} \mathbf{y} &= A\mathbf{x} &= \begin{bmatrix} x_1\cos\theta - x_2\sin\theta \\ x_1\sin\theta + x_2\cos\theta \end{bmatrix} \\ A &= \begin{bmatrix} \cos\theta & -\sin\theta \\ \sin\theta & \cos\theta \end{bmatrix} \end{align*}\]

Shear

\[\begin{align*} \mathbf{y} &= A\mathbf{x} &= \begin{bmatrix} x_1+ax_2 \\ x_2 \end{bmatrix} \\ A &= \begin{bmatrix} 1 & a \\ 0 & 1 \end{bmatrix} \end{align*}\]

Homogeneous Coordinates

\(\mathbf{p}_{i}\) represents a ray in space rather than a point.

\[\begin{align*} \mathbf{p}_i &= \begin{bmatrix} \lambda x \\ \lambda y \\ \lambda \end{bmatrix} = \begin{bmatrix} x \\ y \\ 1 \end{bmatrix} && \forall \lambda\in\mathbb{R} \end{align*}\]

Advantages of using homogeneous coordinates

From linear algebra, we can represent,

\[\begin{align*} \mathbf{y} &= A\mathbf{x} \\ \text{or, } y_i &= \sum_j a_{ij}x_j \end{align*}\]

But what about the following case?

\[\begin{align*} \mathbf{y} &= \mathbf{x} + \mathbf{t} \end{align*}\]

This can be represented as \(\mathbf{y} = A\mathbf{x}\), if \(\mathbf{y}\) and \(\mathbf{x}\) are homogeneous coordinates.

(Think about it)

Translation

With homogeneous coordinates,

\[\begin{align*} \mathbf{y} &= A\mathbf{x} &= \begin{bmatrix} x_1 + t_1 \\ x_2 + t_2 \\ 1 \end{bmatrix} \\ A &= \begin{bmatrix} 1&0&t_1 \\ 0&1&t_1 \\ 0&0&1 \end{bmatrix} \end{align*}\]

Transformation Matrices With Homogeneous Coordinates

Scale

\[\begin{align*} A &= \begin{bmatrix} s_1 & 0 & 0 \\ 0 & s_2 & 0 \\ 0 & 0 & 1 \end{bmatrix} \end{align*}\]
Rotate

\[\begin{align*} A &= \begin{bmatrix} \cos\theta & -\sin\theta & 0 \\ \sin\theta & \cos\theta & 0 \\ 0 & 0 & 1 \end{bmatrix} \end{align*}\]
Shear

\[\begin{align*} A &= \begin{bmatrix} 1 & a & 0 \\ 0 & 1 & 0 \\ 0 & 0 & 1 \end{bmatrix} \end{align*}\]

Geometric Transformation in 3-or-more Dims

The matrices here represent transformation with homogeneous coordinates;

Scale

\[\begin{align*} A &= \begin{bmatrix} s_1 & 0 & \cdots & 0 \\ 0 & s_2 & \cdots & 0 \\ \vdots & \vdots & \ddots & \vdots \\ 0 & 0 & \cdots & 1 \end{bmatrix} \end{align*}\]
Translate

\[\begin{align*} A &= \begin{bmatrix} 1 & 0 & \cdots & t_1 \\ 0 & 1 & \cdots & t_2 \\ \vdots & \vdots & \ddots & \vdots \\ 0 & 0 & \cdots & 1 \end{bmatrix} = \begin{bmatrix} I & \mathbf{t} \\ \boldsymbol{0}^T & 1 \end{bmatrix} \end{align*}\]
Shear

\[\begin{align*} A &= \begin{bmatrix} 1 & a_{12} & a_{13} & \cdots & 0 \\ 0 & 1 & a_{23} & \cdots & 0 \\ \vdots & \vdots & \vdots & \ddots & \vdots \\ 0 & 0 & 0 & \cdots & 1 \end{bmatrix} = \begin{bmatrix} I+U_0 & \boldsymbol{0} \\ \boldsymbol{0}^{\top} & 1 \end{bmatrix} \end{align*}\]

where, \(U_{0}\) is an upper triangular matrix with zero diagonals.

Advanced Topics

Projection and Rotation in 3D are considered to be advanced topics in Computer Graphics. The curious readers are encouraged to follow the course UCS505 for details.

As in practice, the students shall use mature libraries, instead, to this effect.

Composing Transforms

Interpretation

A transformation is interpreted as to “correspond from one space to another.”
Example

Let’s consider our solar system.
1. A point that sits on the surface of the earth with long-lat as \((\theta,\phi)\), is given as:

  \[\begin{align*} \mathbf{p}_e &= \begin{bmatrix} r_e\cos\theta\cos\phi \\ r_e\cos\theta\sin\phi \\ r_e\sin\theta \\ 1 \end{bmatrix} \end{align*}\]

  using homogeneous Cartesian coordinates.
2. The earth rotates around its axis, with a uniform angular speed \(\omega_a\). So in the axis-space, the coordinates would be, loosely speaking, \(\mathbf{p}_e\) rotated by \(\omega_{a} t\). And formally given as,

  \[\begin{align*} \mathbf{p}_a &= A_{ae}\mathbf{p}_e \\ A_{ae} &= \mathrm{rot}(\omega_a t+\phi_{a,0}) \end{align*}\]
3. Similarly in sun-space,

  \[\begin{align*} \mathbf{p}_s &= A_{sa}\mathbf{p}_a = A_{sa}A_{ae}\mathbf{p}_e \\ A_{as} &= \mathrm{rot}(\omega_s t+\phi_{s,0}) \end{align*}\]
4. Effectively, if \(\mathbf{p}_s = A_{se}\mathbf{p}_e\), we have,

  \[\begin{align*} A_{se} &= A_{sa}A_{ae} \end{align*}\]

  This method is called (de)composing.

Model-View-Projection

Model Space

Continuing with the same example, let’s assume that “the sun” is our “model space.” And \(A_{se}\) expresses a point on the earth’s surface in the sun-space.
View Space

We would like to view the system from a point in space looking at the solar system so that the view is fully captured within a \(60^{\circ}\) field of view.

If the point of view is located at \(\mathbf{p}_c\) in model space, and the camera is looking at point \(\mathbf{p}_v\) in model space; we should be able to (de)compose the transformation from model-space to “view space” or “camera space” as a sequence of geometric transformations.

Some practical references to the glm::look_at function:
Projection Space

Depending upon whether the camera is orthogonal or perspective, we finally capture the projection of “the scene,” on an imaginary projection screen kept at \(\begin{bmatrix}0&0&1\end{bmatrix}^{\top}\). This is called “the projection space.”
The MVP Transformation

To compute the coordinates of a point on object, say \(\mathbf{p}_e\), as projected onto a projection space, \(\mathbf{p}_{\pi}\), we compute this as,

\[\begin{align*} \mathbf{p}_{\pi} &= PVM\mathbf{p}_e \end{align*}\]

where,
\(P\) is the transformation matrix from view space to projection space;
\(V\) is the transformation matrix from model space to view space; and
\(M\) is the transformation matrix from object space to model space.

Geometric Image Formation

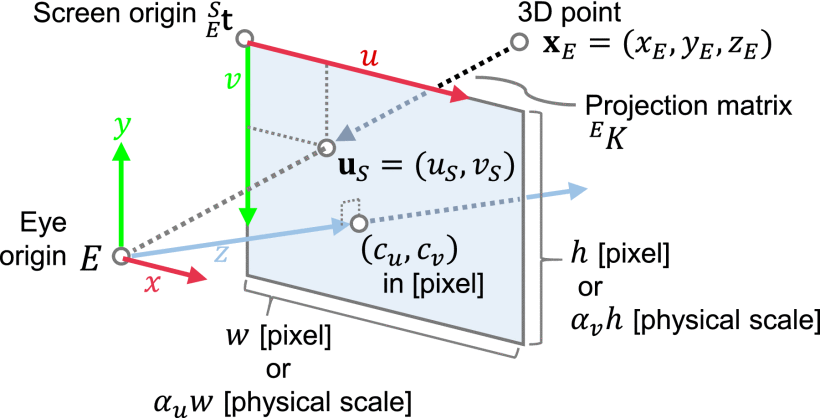

The Pinhole Model (Fig. )

The fundamental geometric model for any camera is the Pinhole Camera Model. It simplifies the complex optics of a lens to a single aperture, or pinhole, which projects a 3D point \((X, Y, Z)\) onto a 2D image plane \((x, y)\).

Using homogeneous coordinates, this transformation can be concisely expressed as a matrix multiplication:

\[s \mathbf{p} = \mathbf{K} [\mathbf{R} | \mathbf{t}] \mathbf{P}\]

\(\mathbf{P} \equiv \begin{bmatrix}X & Y & Z & 1\end{bmatrix}^T\) is the 3D point in world coordinates.
\(\mathbf{p} \equiv \begin{bmatrix} x & y & 1 \end{bmatrix}^T\) is the homogeneous counterpart of 2D point \((x, y)\) in image coordinates (projected to 3D).
\(s\) is an arbitrary scale factor (often \(=Z\), i.e. the depth).
\([\mathbf{R} | \mathbf{t}]\) is the Extrinsic Parameter Matrix (a \(3 \times 4\) matrix combining a \(3 \times 3\) rotation matrix \(\mathbf{R}\) and a \(3 \times 1\) translation vector \(\mathbf{t}\)). This defines the camera's position and orientation relative to the world coordinate system.
\(\mathbf{K}\) is the Intrinsic Parameter Matrix (a \(3 \times 3\) upper-triangular matrix), which maps normalized camera coordinates to pixel coordinates. It depends on focal lengths (\(f_x, f_y\)) and the principal point (\(c_x, c_y\)).

This model formalizes the loss of depth information and provides the framework for tasks like 3D reconstruction (Structure from Motion) and position estimation (Visual Odometry).

Camera Tracking

Calibration and registration are fundamental processes in AR.
Calibration aligns the camera w.r.t. the real world.
Registration aligns digital content w.r.t. the camera.
Without proper calibration and registration, virtual objects would appear to float, jitter, or be incorrectly scaled, breaking the immersive illusion of AR.

Calibration

Determine the camera properties,

Intrinsic Params
- Focal length \((f_x, f_y)\)
- Principal point \((c_x, c_y)\)
- Skew coefficient : typically assumed to be zero.
- Distortion coefficients \((k_1, k_2, p_1, p_2, k_3, \ldots)\) that account for radial and tangential distortions.
Extrinsic Params (Camera Pose, i.e. its precise position and orientation)
- Rotation matrix, \(R\)
- Translation vector \(\mathbf{t}\)

(As covered in the geometric model)

Registration

Align virtual content with the real world in real-time,

Scene Information Extraction:

Feature Detection
Sensor Fusion

Temporal Correspondence Estimation:

Correspondence across scene information
Marker-based AR: Detect markers and establish correspondence
Markerless/SLAM-based: Use features to establish correspondence.

Pose Estimation (Real-time tracking)

Estimate 6 DoF camera pose using correspondences;
This is an iterative process of refining the pose as new frames are captured, and new correspondences are established.
Algorithms used:
- Perspective and point (PnP)
- Bundle Adjustment
- Filtering techniques (e.g. Kalman filters, particle filters)

Virtual Content Overlay

Based on estimated camera pose, and predefined transformation of virtual content relative to tracked real world, virtual content is rendered and projected onto the camera’s view.
Three key operations, so that the virtual objects appear to be a natural part of physical environment:
- Estimating geometric transformation (namely perspective, scale and rotation)
- Estimating illumination model;
- Occlusion handling.

Registration Strategies

Marker-based : Track the marker
Markerless : Track the natural features
Model-based : Track the geometric model of the real world
Location-based : Based on GPS/IMU data, typically, in an outdoor setting.

Essentially

Calibration is a one-time (or occasional) process to characterize the camera itself; while
Registration is the continuous, real-time process, to correctly place virtual objects in the augmented view.
